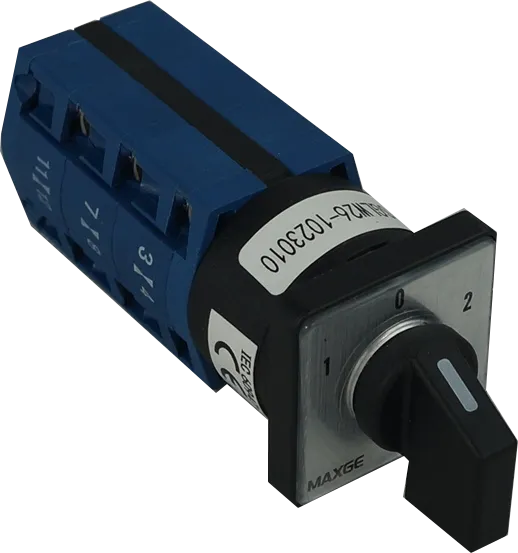

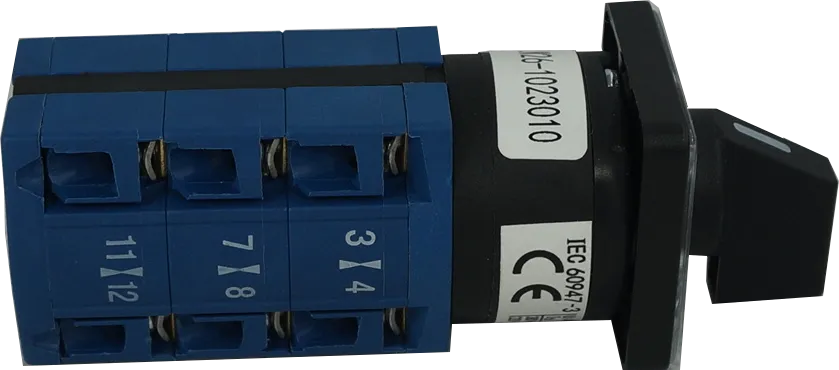

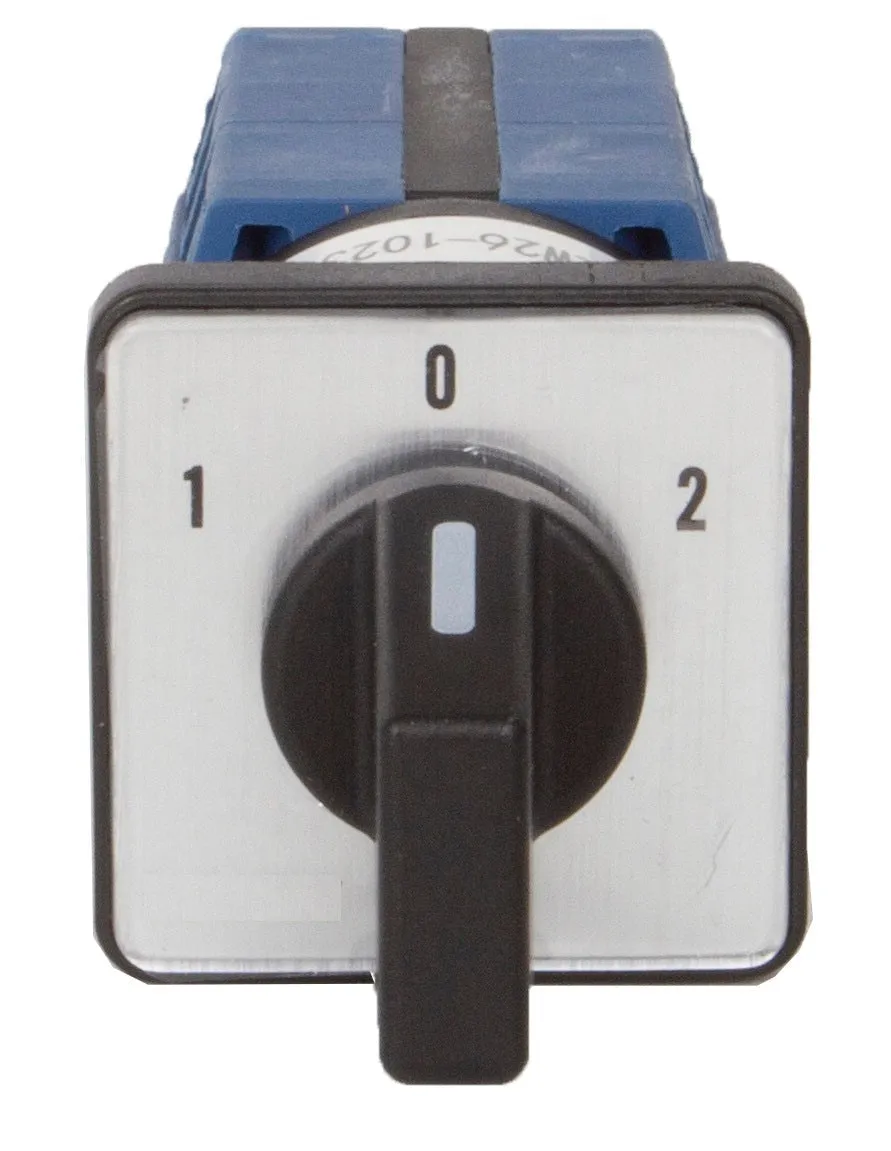

TGLW26-1022125, 2 Pole Rotary Switch BLACK, 125 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
Rotary Load Break or Disconnect Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user..
Features :
- 400VAC in various current ratings
- 1 Pole Momentary
- 64mm x 64mm Cutout
Standards :
- IP40
- IEC60947-5-1
- CE
Specification
| TRENT Part Number | TGLW26-1022125 |
| Functions | 2 Pole AC Disconnect |
| Nominal Voltage | 400VAC @ 50/60Hz |
| Rated Impulse Voltage | 6kV |
| Nominal Current Range AC | 125 Amp @400VAC |
| Rated Insulation Voltage | 690VAC |
| Humidity | 35-85% |
| Approvals | CE |
| Standards | IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) |
| Weight | 1kg |
| Enclosure Material | UL94V0 |
| Factory Pack Qty | 1 |
| TRENT(Fastron) Head Office | Australia |
