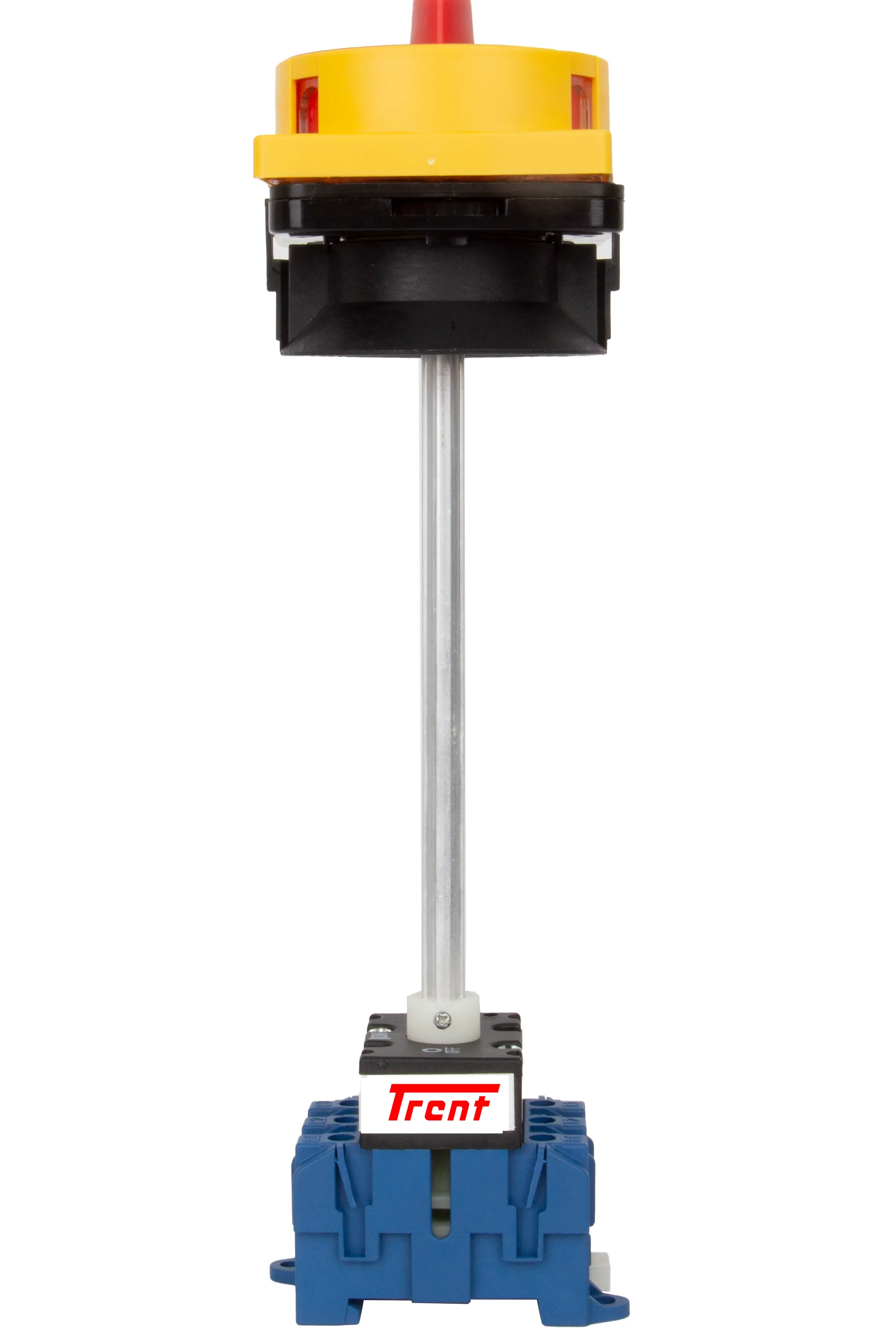

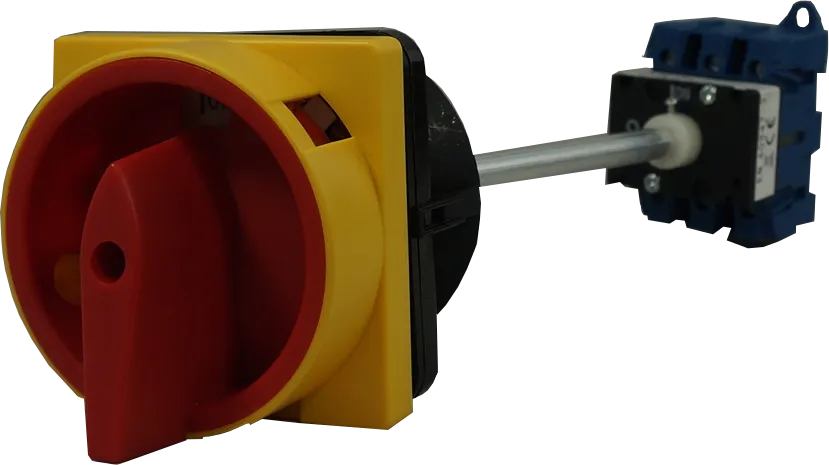

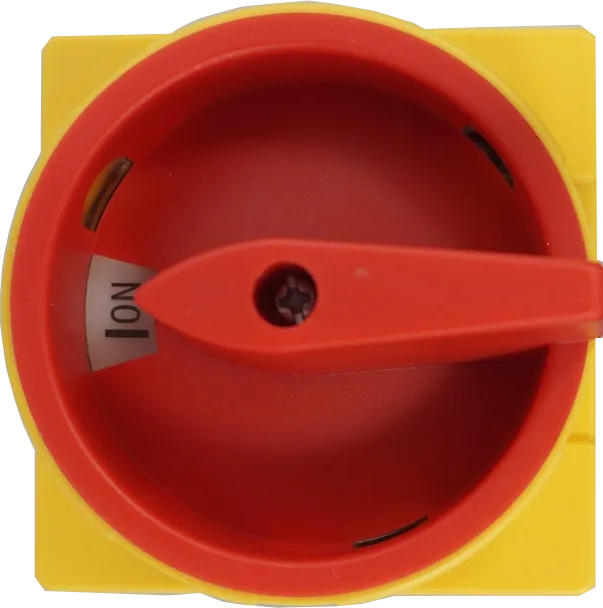

TGLW30-4R63, 4 Pole Rotary/CAM Switch RED, 63 Amp 400VAC, Plastic, Direct Type, IEC60947-5-1
Rotary CAM Switches are used to Isolate or Switch under load. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user.
Features :
- 400VAC in various current ratings
- 4 Pole 2 Position
- 64mm x 64mm Cutout
Standards :
- IP40 Front, IP20 Terminals
- IEC 60947-1,-3
- IEC 60204
Specification
| TRENT Part Number | TGLW30-4R63 |
| Functions | 4 Pole AC Disconnect CAM Switch |
| Nominal Voltage | 400VAC @ 50/60Hz |
| Rated Impulse Voltage | 6kV |
| Nominal Current Range AC | 63 Amp @400VAC |
| Rated Insulation Voltage | 690VAC |
| Humidity | 10-85% |
| Approvals | CE |
| Standards | IEC 60947-1,-3, IEC 60204, IP20 (IP40 Installed) |
| Weight | 265g |
| Enclosure Material | UL94V0 |
| Factory Pack Qty | 1 |
| TRENT(Fastron) Head Office | Australia |
